AVS550SM 55" Black Frame 4K Ultra HD Waterproof Smart TV

AVS550SM 55" Black Frame 4K Ultra HD Waterproof Smart TV

Model: AVS550SM (Black)
Will write an opinion

Hit

AVS550SM 55" Black Frame 4K Ultra HD Waterproof Smart TV

Price:

€3,239

Additional photos and videos

Characteristics Reviews and questions about the product Documentation ³

Weight of goods in the package: 66000 g

Package dimensions: 1560 x 1145 x 236 mm

Specifications

Product

Model: AVS550SM (Black)
Smart TV: Yes

Design

Screen Finish: Black Frame
Frame Material: Steel
Screen Material: Tempered Safety Glass
Waterproof Rating: IP65 Front , IPX4 Back

Display

Screen Size: 55" (139 cm)
Screen Type: LED LCD
Resolution: 4K UHD (3840x2160)
Brightness: 650 cd/m2
Aspect Ratio: 16:9
Contrast Ratio: 1200:1 (typ.)
Colour Depth: 1.07 Billion
Viewing Angle: 178°/178° (H/V)

Operating system

OS: Android
OS version: 11 (AOSP)
APP: Google Play Store, Chrome

Processor and memory

CPU: RTD2853 ARM Cortex-A55 up to 1.5GHz (Quad core)
GPU: Mail G31*2-High speed 900MHz
RAM: DDR3 1.5G
Storage: 8G

Audio

Speakers: 2 x Internal Vibration Speakers
Output: 2*10W/6Ohms

TV System

DTV Tuner: DVB-T/T2/C/S2/ATSC (support H.264/H.265, Dolby)
Analogue Tuner: Video: NTSC/PAL/PAL-M/PAL-N,Audio: BG/DK/I

Video (by USB)

USB Host: Video, pictures and music from USB flash / HDD
Supported File Types: Video: MPEG1/2/4, H.264(AVC), H.265*(HEVC), WMV*, VC1, VP8, VP9, RM*, AVS*, AVS2.0, XVID, DIVX*, AV1, Motion JEPG, H.263 Audio: PCM, AMR, LPCM, RA*, MPEG1/2/4 ,AAC, WMA*, Dolby AC3*, Dolby EAC3*, Dolby MS11*, Dolby MS12*, Dolby AC4*, FLAC,VORBIS, DTS* Image: *.JPG, *.BMP, *PNG, *.GIF, .WEBP

Features

Wi-Fi: 2.4G/5G, IEEE 802.11 a/b/g/n/ac, 2T2R ,866.7Mbps
Ethernet: RJ45 10/100M auto-identification and DHCP
Bluetooth: V5.0
Touch button: Power, Menu, Volume+, Volume-, Channel+, Channel-, Source

Ports and Connectors

TV In / Aerial: 1 x ICE TYPE TV (75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) 1 x F TYPE(ATSC)
HDMI Input: 3 (HDMI2-ARC,HDMI1,2,3-CEC)
USB: 2 (USB2.0)
Optical fiber (Digital Audio Out): 1
Composite In (RCA): 1
RJ45: 1
Earphone: 1
CI slot (CI +): 1 (ATSC not available)
IR pass through: 1
DC In (24V): 1

HDMI

HDMI-CEC (Anynet) Control: TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
HDMI-ARC: Audio Return Channel,TV can return the audio to Amplifier or ARC device

Operating Environment

Working Temperature: 0°C – +80°C

Installation

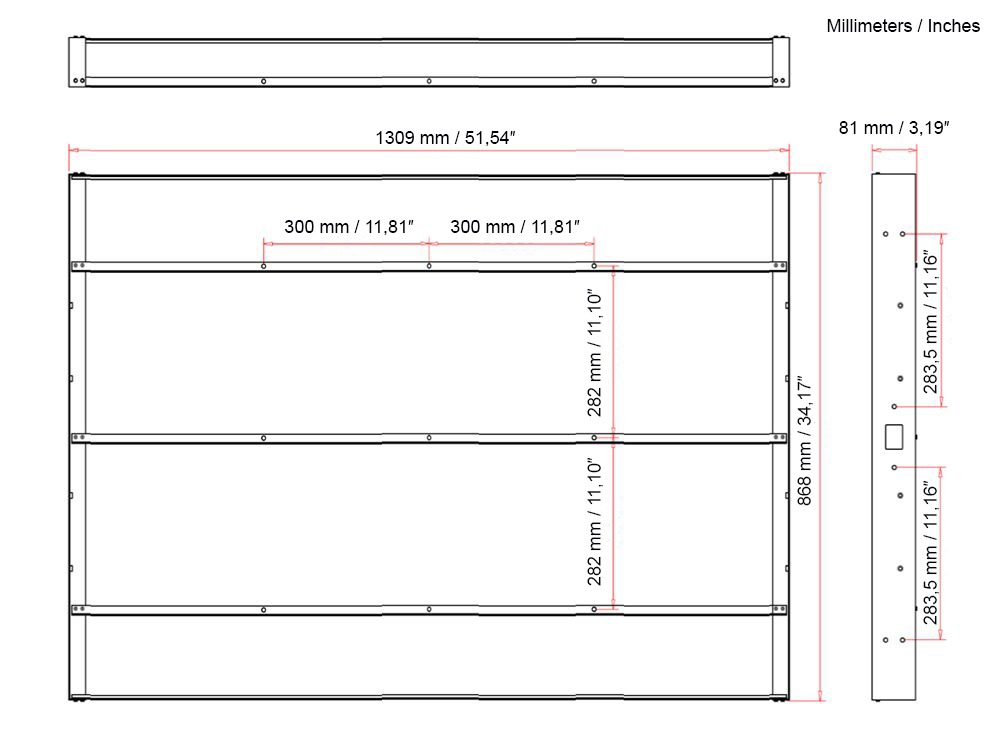

Recess Size (in-wall installation): 1309*868*81 mm (WxHxD)/ 51.54" *34.17" *3.19" (WxHxD)

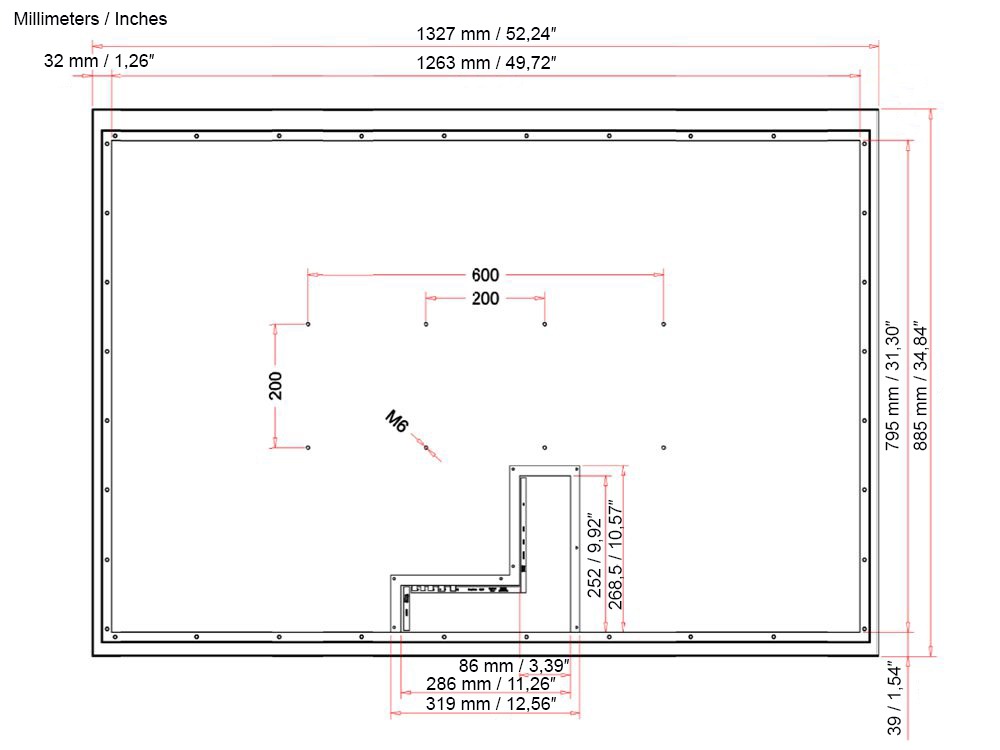

Wall Mount Compatibility (on-wall installation): Vesa (200*200 mm*2)

Certifications and Standards

CE, ROHS, EAC: Yes
IPx4 Waterproof Rating: Yes

Power

Mains Power: AC 100-240V (DC 24V/6A adaptor)
Power Consumption: 115 W
Standby Power Consumption: 0.53 W

Dimensions and Weights

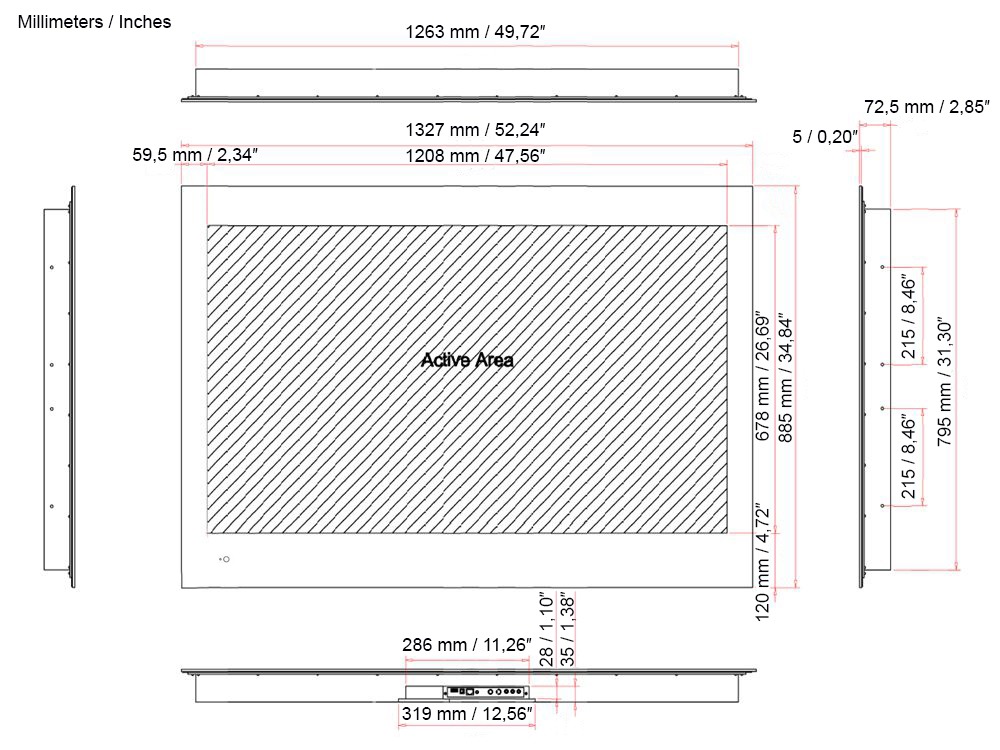

Product Size: 52.24" *34.84" *2.85" (WxHxD)
Product Weight: 113.5 lb
Shipping Size: 61.42" *9.29" *45.08" (WxHxD)
Shipping Weight: 66 kg / 145.5 lb

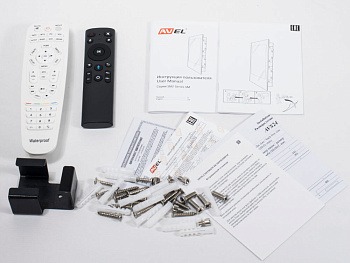

Accessories

Remote Control with Wall Holder: 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
Air Mouse (BT voice remote control): 1 pcs (Non-Waterproof)
Power cable: 1 pcs
Power Adapter: 1 pcs (IP67 waterproof)
Back Box: 1 set (with set of screws for in-wall installation)
User Manual: 1 pcs
Installation Guide: 1 pcs

Warranty

Warranty: 1 Year (manufacturing defects in materials and workmanship)
