AVS220BT 21.5" Hanging LED Magic Mirror Smart TV

Model: AVS220BT (Mirror)
Will write an opinion

New

AVS220BT 21.5" Hanging LED Magic Mirror Smart TV

Price:

€1,300.67

Additional photos and videos

Characteristics Reviews and questions about the product Documentation ⁵

The mirror TV AVS220BT is specially designed for hanging installation, its case depth is 34.5 mm. You don’t have to prepare a recess in the wall, and this is convenient when the repair in the room has already been completed.

The wall-mounted TV has a fairly thin body, 21.5-inch IPS screen, internal speakers, built-in TV tuner and runs on Android OS. All this will allow you to enjoy your favorite TV shows and movies in excellent quality.

This Smart Mirror TV is equipped with a moisture-proof remote control and air mouse for easy operation. In addition, you will find instructions in the product package. The warranty for hanging TV is valid for two years.

Weight of goods in the package: 21100 g

Package dimensions: 929 x 734 x 150 mm

Specifications

Product

Model: AVS220BT (Mirror)
Series: 2022 Bathroom Mirror series
Smart TV: Yes

Design

Screen Finish: Magic Mirror
Frame Material: Steel
Screen Material: Glass
Waterproof Rating: N/A
LED lamp: 50cm, Cool white light, Touch button

Display

Screen Size: 21.5" (55 cm)
Screen Type: LED LCD
Resolution: Full HD (1920x1080)
Brightness: 1000 cd/m2
Aspect Ratio: 16:9
Contrast Ratio: 1000:1 (typ.)
Colour Depth: 16.7 million
Viewing Angle: 178°/178° (H/V)

Operating system

OS: Android
OS version: 11 (AOSP)
APP: Google Play Store, Chrome

Processor and memory

CPU: RTD2841PFG-GR ARM Cortex-A55 up to 1.1GHz (Quad core)
GPU: Dual-core Mali-470MP2
RAM: DDR3 1.5G
Storage: 8G

Audio

Speakers: 2 x Internal Speakers (support external BT speaker)
Output: 2*8W/8Ohms

TV System

DTV Tuner: DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
Analogue Tuner: Video: NTSC/PAL, Audio: M

Video (by USB)

USB Host: Video, pictures and music from USB flash / HDD
Supported File Types: Video: DivX,MPEG1/2/4,Xvid,H.264,H.265,Generic,VC1,VP8,VP9,RM,AVS,Sorenson,Motion JPEG,H.263,
Audio: PN,PCM,AMR,LPCM,RA,MPEG 1/2/4,Dolby AC3 (DD),Dolby EAC3(DDCO),Dolby MS11,Dolby MS12,Dolby ATMOS,DTS,DRA,FLAC,VORBIS,
Image: *.jpg,*.bmp,*.png,*.gif,.mpo,.jps,.pns

Features

Wi-Fi: 2.4G, WIFI IEEE 802.11 b/g/n ,1T1R,150Mbps
Ethernet: RJ45 10/100M auto-identification and DHCP
Bluetooth: BT3.0/4.0

Ports and Connectors

TV In / Aerial: 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
HDMI Input: 2 (HDMI1-ARC,HDMI1&2-CEC)
USB: 2 (USB2.0)
Optical fiber (Digital Audio Out): 1
Composite In (RCA): 1
RJ45: 1
Earphone: 1
CI slot (CI +): 1 (ATSC not available)
IR pass through: 1
AC 100-240V: 1

HDMI

HDMI-CEC (Anynet) Control: TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
HDMI-ARC: Audio Return Channel,TV can return the audio to Amplifier or ARC device

Operating Environment

Working Temperature: 0°C – +50°C

Installation

Recess Size (in-wall installation): N/A
Wall Mount Compatibility (on-wall installation): Vesa (200*200mm), On-Wall holes (WxH=456*448mm)

Certifications and Standards

CE, ROHS, EAC: Yes
IPx4 Waterproof Rating: N/A

Power

Mains Power: AC 100-240V
Power Consumption: 39 W (48W with LED ON)
Standby Power Consumption: 0.65 W (8.65W with LED ON)

Dimensions and Weights

Product Size: 650*850*34.5mm (WxHxD) / 25.59" *33.46" *1.36" (WxHxD)
Product Weight: 18 kg / 39.7 lb
Shipping Size: 929*150*734mm (WxDxH) / 36.57" *5.91" *28.90" (WxHxD)
Shipping Weight: 21.1 kg / 46.5 lb

Accessories

Remote Control with Wall Holder: 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
Air Mouse (BT voice remote control): 1 pcs (Non-Waterproof)
Power cable: 1 pcs
Screws for VESA and On-Wall holes: 1 set
User Manual: 1 pcs
Installation Guide: 1 pcs

Warranty

Warranty: 2 Years

In order to leave a review, you need to

User Manual AVS220OF-270OF-220BT.pdf

User Manual AVS2x0OF_BT 2023.pdf

Installation instruction AVS220BT.pdf

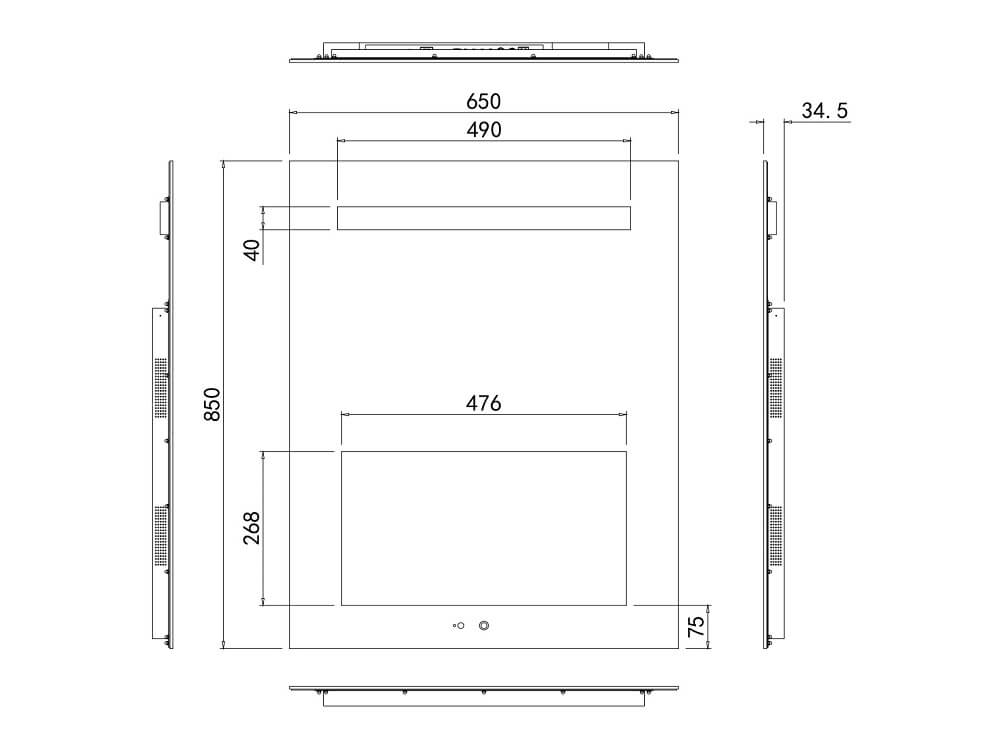

Drawings AVS220BT.jpg

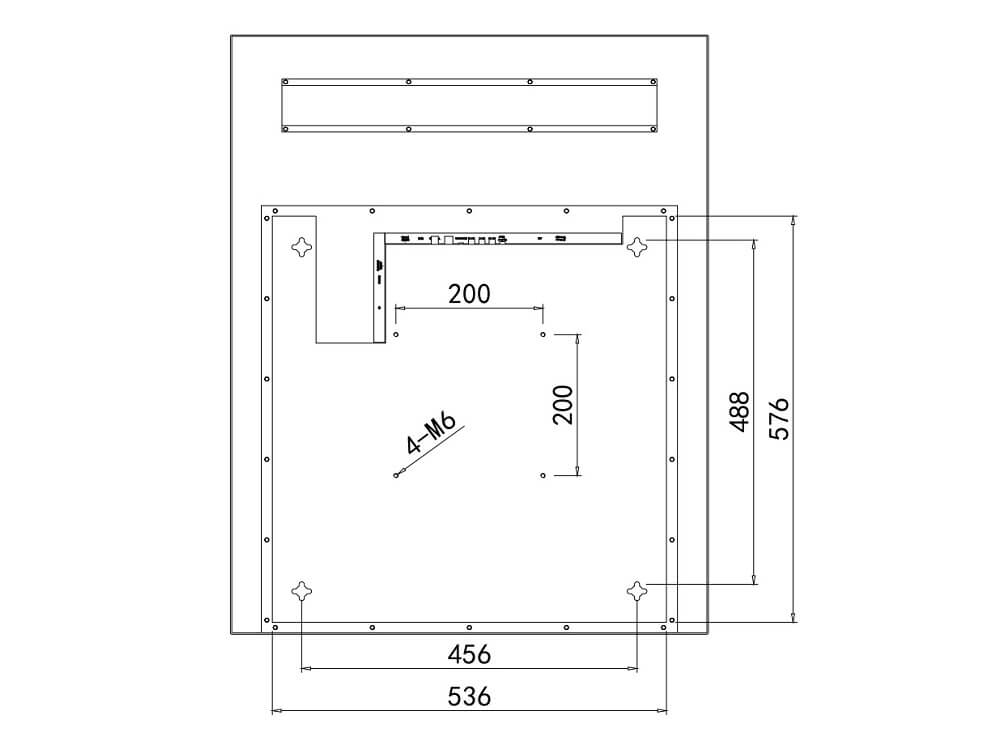

Installation drawings AVS220BT.jpg
