A Cabinet Door TV is a real godsend for a small modern kitchen. Such a device replaces one of the doors, does not take up extra space and looks good next to other built-in appliances. Please note that this 32-inch Smart TV can be installed in a 90 cm wide kitchen cabinet.
Smart TV with a 32-inch screen is made in black, runs on Android OS, has a built-in digital tuner and media player for playing files via USB flash drive or hard drive. This TV in the kitchen is sure to please you with excellent image quality. You will be able to watch not only terrestrial television, but also go online, watch YouTube videos or movies on popular video services, install the necessary applications.
Choose an AVEL TV that will make your home more comfortable and modern. We ship our products worldwide and provide a manufacturer's warranty.
Show all
Collapse description
Weight of goods in the package: 17800 g
Package dimensions:
1005 x 558 x 163 mm
Specifications
- Model
- AVS320KS (Black)
- Series
- 2022 Smart Kitchen TV
- Smart TV
- Yes
- Screen Finish
- Black Frame
- Frame Material
- Steel
- Screen Material
- Tempered Safety Glass
- Screen Size
- 32" (81 cm)
- Screen Type
- LED LCD
- Resolution
- 1920x1080 pixels
- Brightness
- 350 cd/m2
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1200:1 (typ.)
- Colour Depth
- 16.7 million
- Viewing Angle
- 178°/178° (H/V)
- OS
- Android
- OS version
- 11 (AOSP)
- APP
- Google Play Store,Chrome
- CPU
- RTD2841PFG-GR ARM Cortex-A55 up to 1.1GHz (Quad core)
- GPU
- Dual-core Mali-470MP2
- RAM
- DDR3 1.5G
- Storage
- 8G
- Speakers
- 2 x Internal Speakers (support external BT speaker)
- Output
- 2*8W/8Ohms
- DTV Tuner
- DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
- Analogue Tuner
- Video: NTSC/PAL, Audio: M
- USB Host
- Video, pictures and music from USB flash / HDD
- Supported File Types
- Video: DivX,MPEG1/2/4,Xvid,H.264,H.265,Generic,VC1,VP8,VP9,RM,AVS,Sorenson,Motion JPEG,H.263,
Audio: PN,PCM,AMR,LPCM,RA,MPEG 1/2/4,Dolby AC3 (DD),Dolby EAC3(DDCO),Dolby MS11,Dolby MS12,Dolby ATMOS,DTS,DRA,FLAC,VORBIS,
Image: *.jpg,*.bmp,*.png,*.gif,.mpo,.jps,.pns
- Wi-Fi
- 2.4G, WIFI IEEE 802.11 b/g/n ,1T1R,150Mbps
- Ethernet
- RJ45 10/100M auto-identification and DHCP
- Bluetooth
- BT3.0/4.0
- Touch button
- Power, Menu, Volume+, Volume-, Channel+, Channel-, Source
- TV In / Aerial
- 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
- HDMI Input
- 3 (HDMI1-ARC,HDMI1&2&3-CEC)
- USB
- 2 (USB2.0)
- Optical fiber (Digital Audio Out)
- 1
- VGA
- 1
- Composite In (AV, 3.5 mm Mini Jack)
- 1
- Composite In (AV2,RCA)
- 1
- Component In (Y/Pb/Pr, 3.5 mm Mini Jack)
- 1
- RJ45
- 1
- Earphone
- 1
- CI slot (CI +)
- 1 (ATSC not available)
- PC Audio (Mini Jack)
- 1
- IR pass through
- 1
- DC In (24V)
- 1
- HDMI-CEC (Anynet) Control
- TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
- HDMI-ARC
- Audio Return Channel,TV can return the audio to Amplifier or ARC device
- Working Temperature
- 0°C – +50°C
- Swing Up Systems Compatibility
- Blum HK TOP29 (22K2910 with pre-mounted screws + 20S4200 front fixing bracket)
Kessebohmer FREEflap forte-G, push-to-open and eTouch options are supported
Hafele Free Flap 3.15 G, push-to-open and eTouch options are supported
DTC TOP STAY SF, SF00AH, power factor 3200-9000 (h250-720). Catalog number white caps - SF00AH02A
- Slide Up Systems Compatibility
- Blum Aventos HL29/35 (20S4200). Servo Drive option is supported
Kessebohmer FREEslide Q4us, push-to-open and eTouch options are supported
Hafele Free up Q4us, push-to-open and eTouch options are supported
- Flip Up Lift System with Handle
- Blum HK TOP29 (22K2910 with pre-mounted screws + 20S4200 front fixing bracket)
Kessebohmer FREEflap forte-G
Hafele Free Flap 3.15 G
- Flip Up Lift System with Push to Open (without Handle)
- HK TOP29T (22K2910T with pre-mounted screws + 20S4200 front fixing bracket + 956A1004 Tip-On set)
Kessebohmer FREEflap forte-G + Push to Open 26-48N
Hafele Free Flap 3.15 G + Door catch 26-48N
- Slide Up Lift System with Handle
- Blum HL29/35 (with 20S4200 front fixing bracket)
Kessebohmer FREEslide Q4us + 2719200038 (Cross Bar 900mm)
Hafele Free up Q4us + 372.33.694 Crossbar alu.
- Flip Up Lift System with motorized drive
- Blum HK TOP SERVO-DRIVE SET 23KA000 + Blum plug-in transformer 12W
Kessebohmer eTouch drive for FREEflap (27 2055 7035) + cover set eTouch FREEflap gray (27 1972 7035) + Set of lifts FREEflap mini, series 107 С gr (left, right) cover gray (27 1663 7035)
- Slide Up Lift System with motorized drive
- Blum SERVO-DRIVE SET 21FA000 + Blum plug-in transformer 12W
eTouch drive for fold, slide/swing (27 2054 7035) + cover set eTouch FREEslide gray (27 1970 7035) + lever arm for FreeSlide Q - Н380-500 mm (27 1966 0006) + cross bar for façade 900mm (2719200038)
- Important Note
- Lift Systems are not included — please purchase locally!

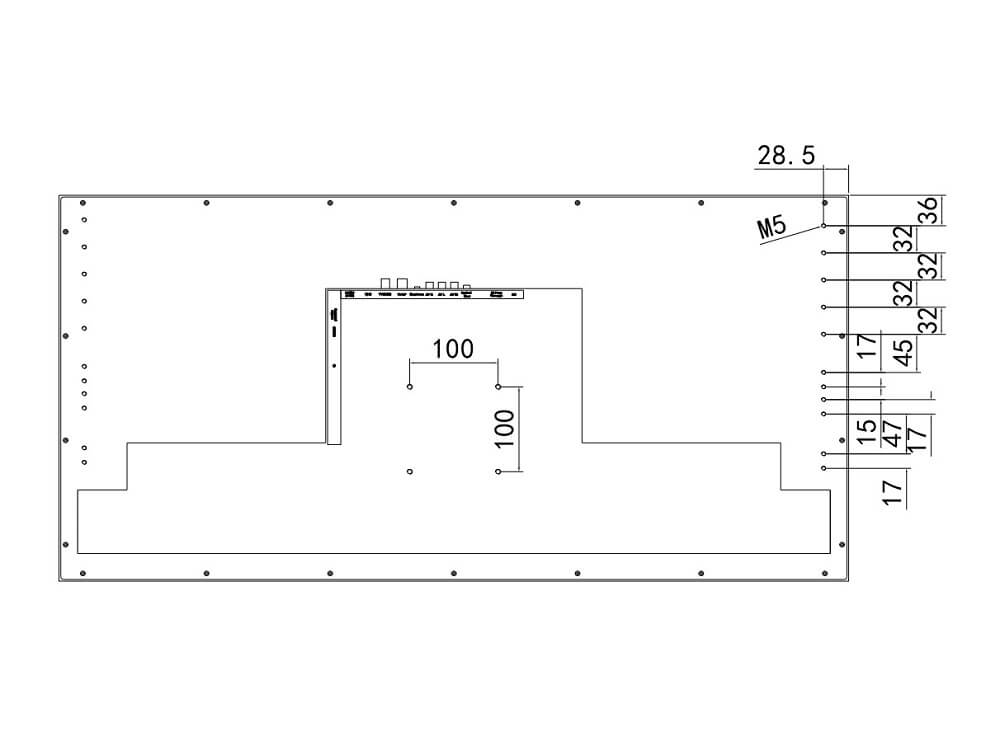

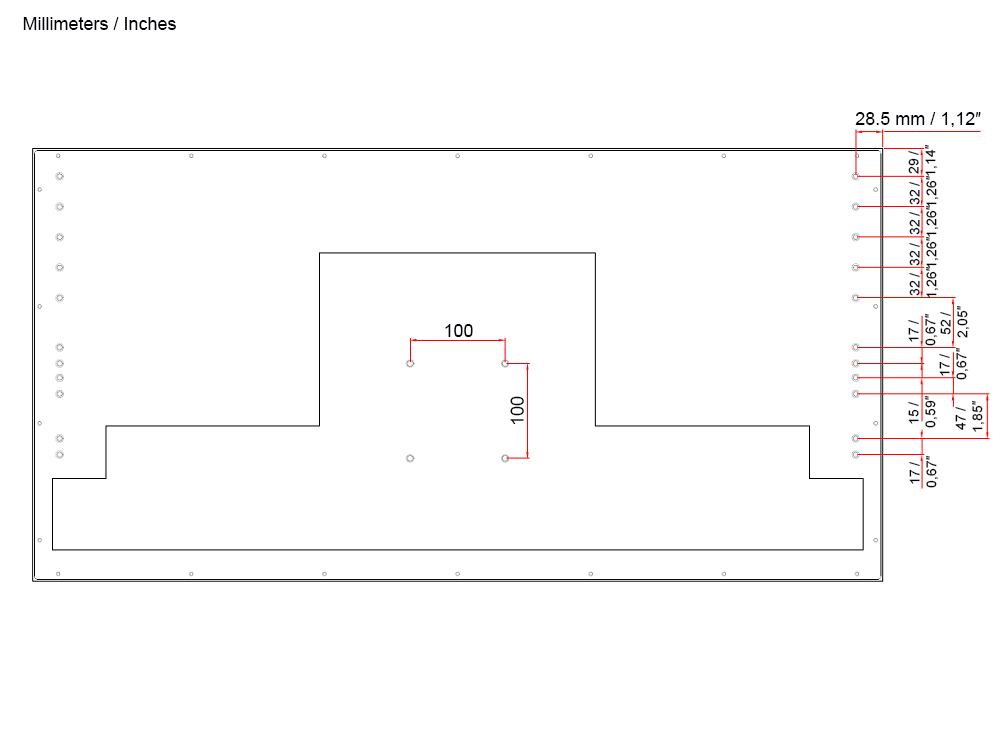

- Wall Mount Compatibility (on-wall installation)
- Vesa (100 x 100 mm)
Certifications and Standards
- CE, ROHS, EAC
- Yes
- Mains Power
- AC 100-240V (DC 24V/6A adaptor)
- Power Consumption
- 44 W
- Standby Power Consumption
- 2.41 W

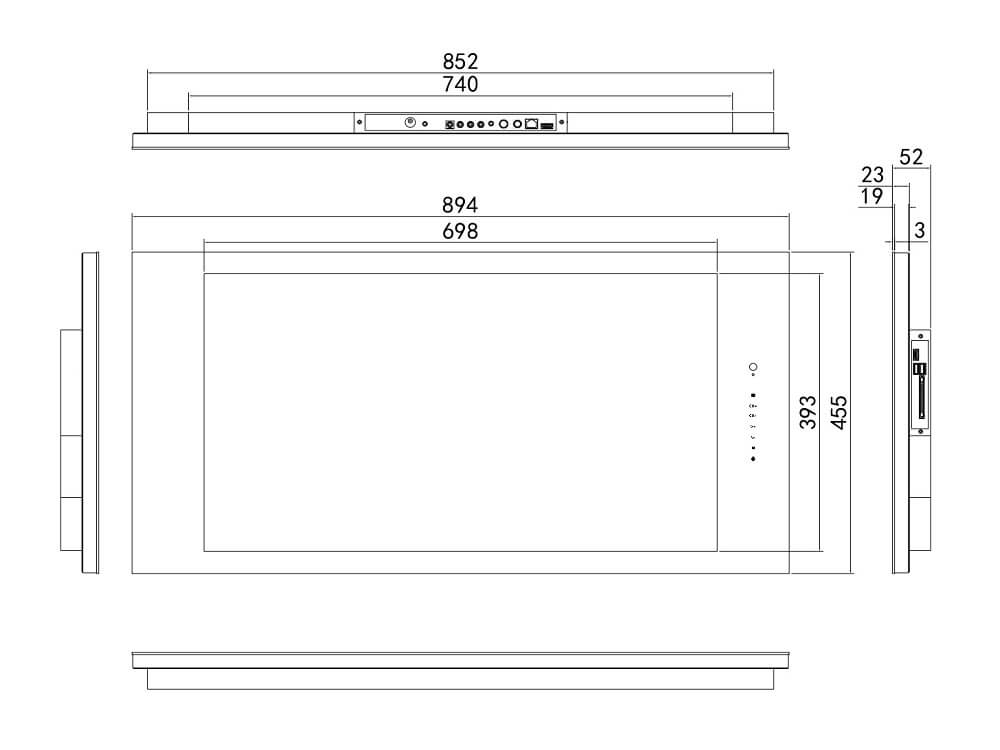

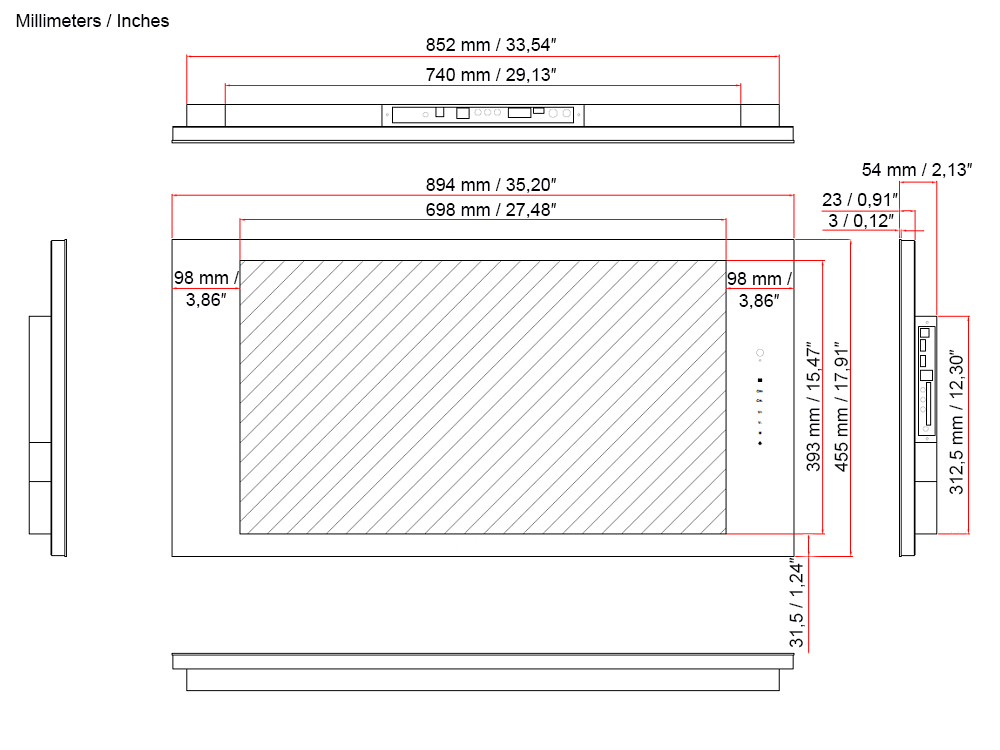

- Product Size
- 894*455*54mm (WxHxD)/ 35.20" *17.91" *2.13" (WxHxD)
- Product Weight
- 14.7 kg / 32.4 lb
- Shipping Size
- 1005*163*558mm (WxDxH)/ 39.57" *6.42" *21.97" (WxHxD)
- Shipping Weight
- 17.8 kg / 39.2 lb
- Remote Control with Wall Holder
- 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
- Air Mouse (BT voice remote control)
- 1 pcs (Non-Waterproof)
- Power cable
- 1 pcs
- Power Adapter
- 1 pcs
- Cable Fixation Ties
- 4 pcs
- Velcro
- 2 pcs*15cm
- Silicone damper
- 2 pcs
- Screws for VESA and Blum / Kessebohmer / Hafele Mounts
- 1 set
- User Manual
- 1 pcs
- Installation Guide
- 1 pcs
