A kitchen TV is a familiar device that may surprise you if you place it instead of a cabinet door. Full HD Smart TV AVS240WS is the latest development of AVEL, which combines the best features and attractive appearance.
The built-in kitchen TV has a 23.8-inch screen surrounded by thin black frames. It is installed in kitchen cabinets with a width of 60 cm on lifting mechanisms from Blum, Kessebohmer and Hafele (sold separately). The Cabinet Door TV will not take up precious space even in a small kitchen; the space behind it will remain fully functional and easily accessible.
Smart TV in the kitchen will appeal to any fan of smart home appliances. Wi-Fi TV has access to applications in Google Play; it is controlled using a waterproof remote control or special air mouse. The digital tuner provides reception of your favorite TV channels, and the built-in media player also allows you to view files from external media.
The front side of the Smart Android TV is made of tempered glass and is protected from moisture, so it can be installed over the sink, stove or oven. Care for it the same way as for other glass surfaces, using non-abrasive detergents.
Show all
Collapse description
Weight of goods in the package: 10550 g
Package dimensions:
694 x 483 x 150 mm
Specifications
- Model
- AVS240WS (Black)
- Series
- 2022 Smart Kitchen TV
- Smart TV
- Yes
- Screen Finish
- Black Frame
- Frame Material
- Steel
- Screen Material
- Tempered Safety Glass
- Screen Size
- 23.8" (61 cm)
- Screen Type
- LED LCD
- Resolution
- Full HD (1920x1080)
- Brightness
- 250 cd/m2
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1000:1 (typ.)
- Colour Depth
- 16.7 million
- Viewing Angle
- 178°/178° (H/V)
- OS
- Android
- OS version
- 9.0
- APP
- Google Play Store, Chrome
- CPU
- RTD2841PFG-GR ARM Cortex-A55 up to 1.1GHz (Quad core)
- GPU
- Dual-core Mali-470MP2
- RAM
- DDR3 1.5G
- Storage
- 8G
- Speakers
- 2 x Internal Speakers (support external BT speaker)
- Output
- 2*5W/6Ohms
- DTV Tuner
- DVB-C/T/T2/S2/S2X (support H.264/H.265, Dolby+)
- Analogue Tuner
- Video: NTSC/PAL, Audio: M
- USB Host
- Video, pictures and music from USB flash / HDD
- Wi-Fi
- 2.4G, WIFI IEEE 802.11 b/g/n ,1T1R,150Mbps
- Ethernet
- RJ45 10/100M auto-identification and DHCP
- Bluetooth
- BT3.0/4.0
- Touch button
- Power, Menu, Volume+, Volume-, Channel+, Channel-, Source
- TV In / Aerial
- 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S2/S2X)
- HDMI Input
- 3 (HDMI1-ARC,HDMI1&2&3-CEC)
- USB
- 2 (USB 2.0)
- Optical fiber (Digital Audio Out)
- 1
- VGA
- 1
- Composite In (AV, 3.5 mm Mini Jack)
- 1
- Composite In (AV2,RCA)
- 1
- Component In (Y/Pb/Pr, 3.5 mm Mini Jack)
- 1
- RJ45
- 1
- Earphone
- 1
- CI slot (CI +)
- 1
- PC Audio (Mini Jack)
- 1
- IR pass through
- 1
- DC In (12V)
- 1
- HDMI-CEC (Anynet) Control
- TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
- HDMI-ARC
- Audio Return Channel,TV can return the audio to Amplifier or ARC device
- Working Temperature
- 0°C – +50°C

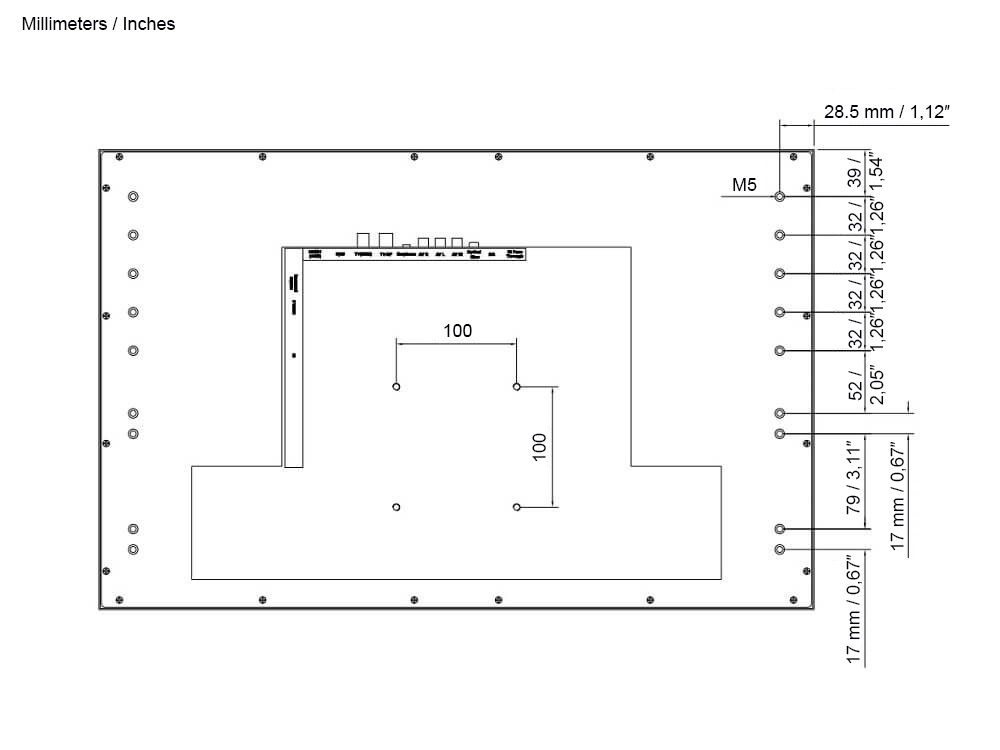

- Wall Mount Compatibility (on-wall installation)
- Vesa (100 x 100 mm)
Certifications and Standards
- CE, ROHS, EAC
- Yes
- Mains Power
- AC 100-240V (DC 12V/4.25A adaptor)
- Power Consumption
- 23 W
- Standby Power Consumption
- 0.23 W
- Shipping Size
- 694*150*483mm (WxDxH)/ 27.32" *5.91" *19.02" (WxHxD)
- Shipping Weight
- 10.55 kg / 23.3 lb
- Remote Control with Wall Holder
- 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
- Air Mouse (BT voice remote control)
- 1 pcs (Non-Waterproof)
- Power cable
- 1 pcs
- Power Adapter
- 1 pcs
- Cable Fixation Ties
- 4 pcs
- Velcro
- 2 pcs*15cm
- Silicone damper
- 2 pcs
- Screws for VESA and Blum / Kessebohmer / Hafele Mounts
- 1 set
- User Manual
- 1 pcs
- Installation Guide
- 1 pcs
