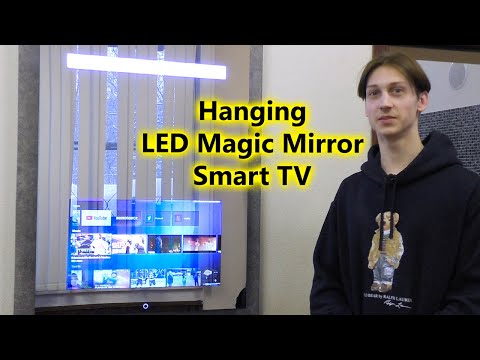

Mirror Smart TV AVS220BT

One of the modern technical innovations of AVEL is the mirror TV, which will be an ideal addition to any interior. This is an independent design solution that can become an indispensable element of your home and office. There is no necessity to choose the design, the shade of the case that will suit the surrounding interior – the built-in AVEL mirror TV will harmoniously fit into any design solution.

Design features

Externally, the AVS220BT model is a mirror with LED backlight, which has a built-in 22-inch smart TV.

This model is specially designed for wall mounting and can be installed immediately after renovation on a VESA 200x200 mount, or as a regular mirror, on special mounting holes located on the back of the case. Hole spacing for surface mounting are 456 mm horizontally and 448 mm vertically. The thickness of the case is only 34.5 mm. Mirror height 850 mm, width 650 mm. The weight of the device is about 15.9 kg.

The backlight on the mirror has a cold white glow, which is turned on by Touch button located at the bottom of the device. This model is equipped with a super-bright matrix – IPS with Full HD resolution, the brightness of 1000 cd/m², the contrast ratio of 1000: 1, and the viewing angles are 178 degrees.

TV AVS220BT is equipped with a  digital tuner (DVB-C/T/T2/S2/S2X), with support for satellite broadcasting. Additionally, the model is equipped with two speakers with a power of 6W, located on the sides of the device.

AVS220BT has a built-in SmartTV under the Android TV operating system. The TV  works on a Cortex A55 processor. The amount of 1.5GB RAM and the Mali-470MP3 GPU are more than enough to keep the fast working of the device.

Thanks to the built-in SmartTV running on Android, a user can easily install all the necessary applications, such as online cinemas, YouTube, and other applications, including games.

The Internet can be connected via Wi-Fi or via the RJ45 connector. There is also a built-in Bluetooth, through which the user can connect wireless headphones or a gamepad.

All the necessary wired interfaces are located on top of the device:

• 3 HDMI connectors, 2 of which support CEC, and 1 HDMI supporting ARC
• 2 USB connectors
• F-socket for terrestrial TV connection and threaded F-connector for satellite TV connection.

There are also VGA, RCA connectors and an infrared pass-through for controlling an external receiver.

The TV is equipped with 2 remote controls, the one with water splash protection and a holder on the wall. If necessary,  remote control can be rinsed under the tap. The second radio remote control is with the air mouse function, to be connected by an adapter via a USB connector (the receiver is located in the battery compartment). Besides, included are the necessary screws for installation, a user manual, a schematic drawing, a copy of the certificate of conformity, and a warranty card. The warranty for this model, as well as for all AVEL built-in TVs, is 2 years.

Benefits of Mirror TV

This TV can be installed over the sink in the bathroom. Also, it is ideal solution for the hairdressing salon, especially children's, when the child can be interested by watching cartoons while the master does his job. A TV in a mirror is suitable for a small room where the user does not need to place a large diagonal frame, but a mirror is very necessary.

Another place for  application of mirror TV is the beauty industry –  the device will give a stylish interior view to a beauty salon or barbershop, and will also take on the solution of several functional tasks at once. The clients will be able to view their favorite content while the  hairdresser is working, as well as turn on the display of photo/video materials on the screen when discussing hairstyles, haircuts, style, recommendations for the clients on  hair/skin care, and the choice of cosmetics.

By integrating into a mirrored surface, the ТV picture becomes invisible when switched off. The high quality of the materials and the advanced technologies used in the production of the TV ensure the perfect transparency of the mirror surface, as well as a bright, saturated image when working in the TV mode.
